Boers Techniek

Recently the demand has grown for foam mattresses and pillows with holes for air circulation and Boers Techniek make an excellent range of machinery for this application. The advantage of Boers Techniek machines is that they not only drill the holes quickly and effectively, but also remove the drilled foam automatically. This means that you do not need to manually remove the drilled parts which is a slow and labour intensive process. Furthermore, they do not use air to remove the cores as this is a very expensive method. Please see their video on YouTube showing one of their machines in operation by typing “foam drilling Boers Techniek”. Apart from building a standard range of machinery, they also design equipment to meet customers’ specific requirements.

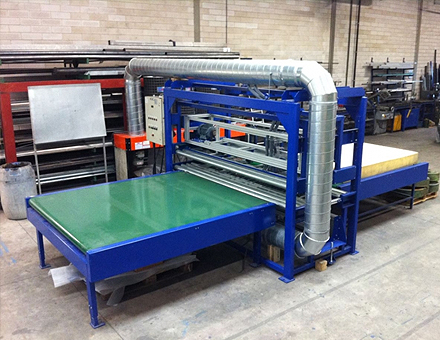

FOAM MATTRESS DRILL 220CM 9103 VARIABLE

Specifications



Overall size approx. 4.7m x 2.8m x 2.3m (LxWxH)
Size of plate length max. 2200mm min. 800mm
  width max. 2200mm
  thickness max. 300mm min. 110mm or .....mm
Weight approx. 2400kg
Machine output approx. 3 minutes with 5 steps drilling
Power input   380V - 50 Hz - 16A
    480V - 60 Hz - 10A
Drill motor   2x ore 4x (more price 2.500 euro) yellow
Drill blocks   2x20 ore 4x40 (more price 11.000 euro) yellow
Drill   2x15 ore 4x15 (more price 2.500 euro) yellow
Hole size   12, 15, 20mm ore ..... (more price)
Distant drill   min. 50mm
Option 1   automatic lubrication system (more price 9.600 euro)
Option 2   rest material take away system (more price 9.800 euro)

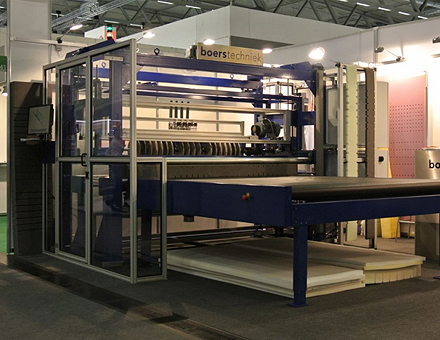

FOAM MATTRESS MILLING MACHINE









Specifications



Visit Boers Techniek's website for more detailed information : https://www.boerstech.eu/
